Power Factor Correction Of Industrial Load

April 19, 2018

Power factor correction increases the power factor of a load improving efficiency for the distribution system to which it is attached. The simplest way to improve power factor is to add pf correction capacitors to the electrical system.

Power Factor Correction With Synchronous Condenser For Power

Kvar Power Factor Correction In The Home Is A Scam

$Power Factor Wikipedia$

Power Factor Wikipedia

Each one has its own character and we strive to maintain maximum possible power factor.

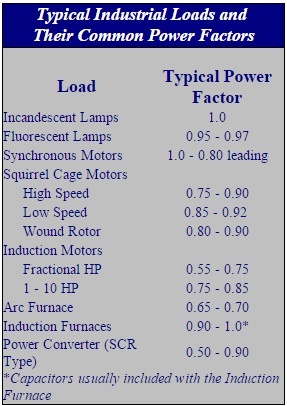

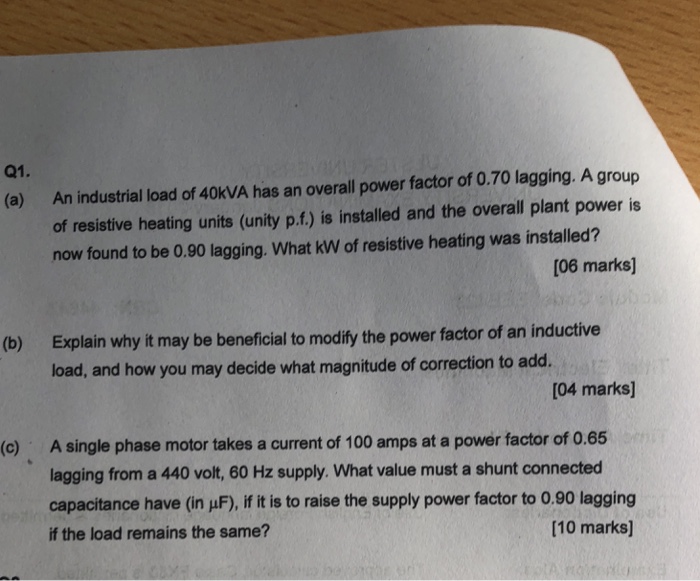

Power factor correction of industrial load. What is power factor power factor is the cosine of the phase angle between current and voltage. P active true or real power watts s apparent power va volts amps a low power factor is the result of inductive loads such as transformers and electric motors. Unlike resistance loads creating heat by consuming kilowatts inductive loads require a current flow to create magnetic fields to produce the desired work.

Power factor correction what is power factor. If this load is an electric motor or most any other industrial ac load it will have a lagging inductive power factor which means that well have to correct for it with a capacitor of appropriate size wired in parallel. Power factor correction design for industrial loads.

Pf correction capacitors act as reactive current generators. Power factor if industrial unit depends on the mix of all types of machines ovens pumps lighting etc. Pf power factor.

A high power factor near 10 indicates efficient utilization of electrical power while a low power factor indicates poor utilization of electrical power. An industrial electrical contractor should be familiar with this. Power factor is the ratio of true power to apparent power.

Power factor correction actually does not save much energy usually less than 1 of load requirements and even that reduction depends on how low the power factor is to begin with and how heavily loaded inductive devices are in the distribution system. Non linear loads such as rectifiers distort the current drawn from the system. In such cases active or passive power factor correction may be used to counteract the distortion and raise the power factor.

This is usually accomplished by introducing active or passive power factor correction pfc circuit internal to the power supply. Lighting load can have ow power factor of 04 07 except for incandescent bulbs which are out if date. Power factor is a measurement of how effectively electrical power is being used.

When you deal with electrical system in an industrial or commercial facility where the load properties are given you may need to add external components such as pfc capacitors to raise the pf to an acceptable level to avoid surcharge or penalty fee. Linear loads with low power factor such as induction motors can be corrected with a passive network of capacitors or inductors. They help offset the non working power used by inductive loads thereby improving the power factor.
